Fiberglass Dinghy - Foam Core

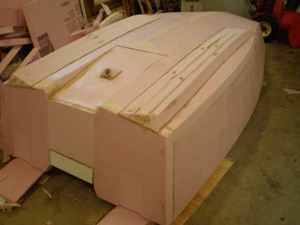

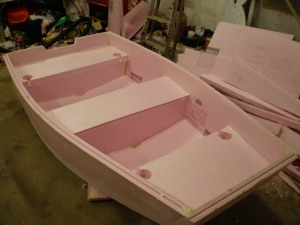

More detail work on the interior.  I added strakes to the outside of the hull to give the boat a bit more stability while loading/unloading.  Also, the hull has about 18” of free board rather than the usual 15”.  So, I needed to modify the transom area to accommodate a regular shaft outboard (15”).  I also made the boat ‘self-bailing’, so I installed a scupper thru the bottom of the hull.

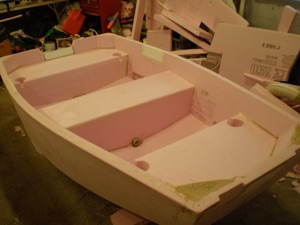

Here is the foam core in its finished form.

Now it was time to think about Fiberglassing - Go to Next Page
